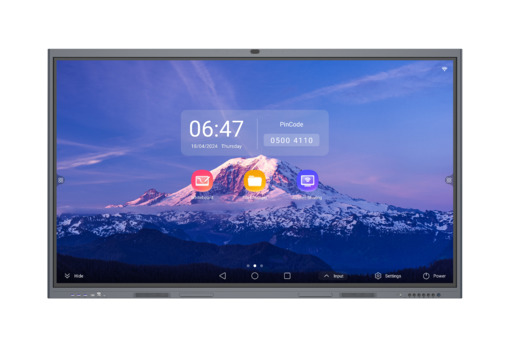

MW3565-U-YP - Uniview - Leader of AIoT Solution

Model	MW3565-U-YP
Panel
Backlight	DLED backlight
Panel Size	65"
Resolution	3840 × 2160
Brightness (cd/m²)	350
Contrast Ratio	4000:1
Response Time (ms)	8
Color Support	1.07 B
Viewing Angle (H/V)	178°/178°
Lifespan (h)	50000
Refresh rate (Hz)	60
Color Gamut	72% NTSC
Surface Hardness	9H (7 on the Mohs scale)
Haze Value	25%
Display Size (mm)	1428.5 x 803.5
Pixel Pitch (H × V) (mm)	0.37 x 0.37
Touch
Touch Control	Up to 40-point multi-touch (WIN: 40-point, Android: 32-point)
Touch Precision (mm)	2
Touch Response Time (ms)	≤5
Touch technology	Infrared touch
System
CPU	8 × A55
RAM	8 GB
ROM	128 GB
CPU Frequency	1.2GHz
Operation System	Android 14.0
Interface
Video Input	2 x HDMI IN 1 x VGA
Video Output	1 x HDMI OUT
Audio Input	1 x 3.5mm interface
Audio Output	1 x COAX, 1 x 3.5mm interface
Other Interfaces	1 x RS232, 4 x USB 2.0, 1 x USB 3.0, 1 x USB Type-C, 2 x TOUCH OUT, 1 x TF CARD
Network	1 x RJ45
Audio
Speaker	2 x 15W
Camera
Camera	48MPAndroid: Pixel 8MP for Photos & 2MP for VideoWindows: Pixel 48MP for Photos & 8MP for Video
viewing angle	118.3°(D), 99.2°(H), 69.7°(V)
Microphone array	8
Pickup distance (m)	Far-field sound pickup:8-12m
Wi-Fi
Wi-Fi Configuration	2.4GHz/5GHz
Bluetooth
Bluetooth Version	5.2
OSD
Multi-Language	27 (Simplified Chinese, Traditional Chinese, Japanese, German, English, Spanish, French, Italian, Portuguese, Russian, Korean, Vietnamese, Ukrainian, Hungarian, Polish, Thai, Arabic, Kazakh, Bulgarian, Galician, Catalan, Uzbek, Indonesian, Czech, Croatian, Slovak, Romanian)
VESA
Wall Mount Hole (mm)	500 x 400
Wall Mount Screw	4-M8 screw hole, hole depth 20mm
General
Overall Power Consumption (W)	<185
Standby Power Consumption (W)	< 0.5
Operating Voltage	AC 100V to 240 V
Product Dimensions (W × H × D) (mm)	1500.6 x 886.8 x 115.7
Package Dimensions (W × H × D) (mm)	1616 x 1012 x 220
Weight (kg)	Net weight: 36Gross weight: 47
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% RH (noncondensing)
Storage Temperature	-20 to 60°C
Storage Humidity	0% to 95% (non-condensing)
Accessories Included	1 x power cable, 2 x touch pen, 1 x quick guide, 1 x wall mount bracket, 1 x infrared remote control, 3 x rod antenna
