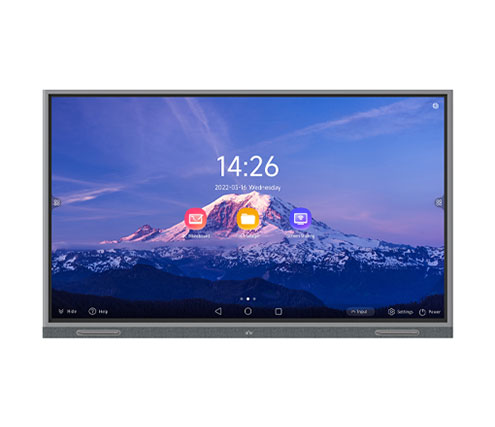

| Model | MW3565-U-S |
| Panel |
| Backlight | DLED |
| Panel size | 65 inches |
| Resolution | 3840*2160 |
| Brightness (cd/m²) | 350 |
| Contrast ratio | 1200:1 |
| Response time (ms) | 8 |
| Color support | 1.07B |
| Viewing angle (H/V) | 178°/178° |
| Android |
| CPU | Quad-core Cortex 2*A53+Cortex 2*A73 and Mali G51 GPU |
| CPU frequency | 1.5GHz |
| RAM | DDR4: 3GB eMMC: 32GB |
| Android version | Android 8.0 |
| Touch |
| Touch control | Infrared touch screen, 20-point multi-touch at most |
| Touch precision (mm) | ±1 |
| Recognizable object | 5 points 2mm |
| Glass | 4mm tempered glass, level 7 on Mohs hardness scale, anti-glare |
| Response time (ms) | ≤10 |
| Touchscreen input | Opaque objects (e.g. finger, pen, etc.) |
| Interface |
| Front interfaces | 1*HDMI IN(4K)、2*USB 2.0 |
| Side interfaces | 2*USB 2.0、1*RS232、1*TOUCH OUT、2*HDMI IN(4K)、1*COAX |
| Bottom interfaces | 1*LAN OUT、1*LAN IN、1*VGA IN、1*AUDIO IN、1*YPbPr、1*AV IN、1*AV OUT、1*AUDIO OUT |
| Audio |
| Speaker | Left channel 17W: 1*treble (6Ω 5W) + 2*bass (6Ω 12W)
Right channel 17W: 1*treble (6Ω 5W) + 2*bass (6Ω 12W) |
| OSD |
| Language supported | 24 (Simplified Chinese、Traditional Chinese、English、Japanese、Arabic、French、Spanish、Portuguese、German、Italian、Dutch、Polish、Korean、Catalan、Galician、Vietnamese、Bulgarian、Kazakh、Russian、Ukrainian、Thai、Uzbek、Hungarian、Croatian) |
| VESA |
| Wall mount hole (mm) | 500*400 |
| Wall mount screw | 4-M8 screw hole |
| General |
| Power supply | AC 100 to 240V, 50/60Hz |
| Typical power consumption (W) | ≤208 |
| Standby power consumption (W) | ＜0.5 |
| Operating temperature | 0 to 50°C |
| Operating humidity | 10% to 90% (non-condensing) |
| Storage temperature | -20 to 60°C |
| Storage humidity | 5% to 90% (non-condensing) |
| Product dimensions (W*H*D)(mm) | 1498*905*89 |
| Package dimensions (W*H*D)(mm) | 1632*1081*222 |
| Weight (kg) | Net weight: 42.0
Gross weight:46.0 |
| Accessories included | 1*power cord、2*touch pen、1*quick guide |
