MW72T-162H-C - Uniview - Leader in Display & Control Solution

Product specification

Model	MW72T162HC
Module	Module
Pixel Pitch	1.875
Cabinet	Cabinet
Display Resolution (W × H)(mm)	1920 × 1080
Display Size (W × H)(mm)	3600 × 2025
Processing Image	Processing Image
Brightness (nits)	600
Viewing Angle (H/V)	160°/160°
Contrast Ratio	20000:1
Color Temperature (K)	6500
Processing performance	Processing performance
Grayscale (bit)	14
Refresh Rate (Hz)	3840
System	System
CPU	CortexA55
GPU	MaliG52
RAM	4 GB
ROM	32 GB
Operation System	Android 11.0
Interface	Interface
Input Interface	1 × HDMI (max. 2048 × 1152@60 Hz)
Output Interface	1 × HDMI 1 × Line out 1 × SPDIF
Other Interfaces	4 × USB 2.0 1 × RS 232
Network	1 Gigabit network interface, RJ45, device management interface 10M/100M/1000M BaseT adaptive.
OPS	1, 90 W
Speaker	15W × 2
Bluetooth	5.2
WiFi	Dual WiFi module AP: 1 × WiFi 5, supports 2.4GHz/5GHz Station: 1 × WiFi 6, supports 2.4GHz/5GHz
Electrical	Electrical
Power Supply	AC 100240 V; 50 Hz/60 Hz
Maximum Power Consumption (W)	2360
Average Power Consumption (W)	800
Standby Power Consumption (W)	0.6
General	General
Product Dimensions (W × H × D) (mm)	3614.0 ×2952.5 × 865.0
Weight (kg)	Net weight: 240 (To Be Determined) Gross weight: 280 (To Be Determined)
Operating Temperature	10°C to 40°C
Operating Humidity	10% to 80% RH (noncondensing)
Storage Temperature	20°C to 60°C
Storage Humidity	10% to 85% RH (noncondensing)
Certifications	CE/FCC/CB
Standard	2 × power cable (10 m), 1 × remote control, 1 × quick guide, 1 × wireless screen sharing dongle, 1 × vacuum sucker, 1 × level instrument, 1 × OPS installation accessories, 1 × floor stand
Product Model	Description

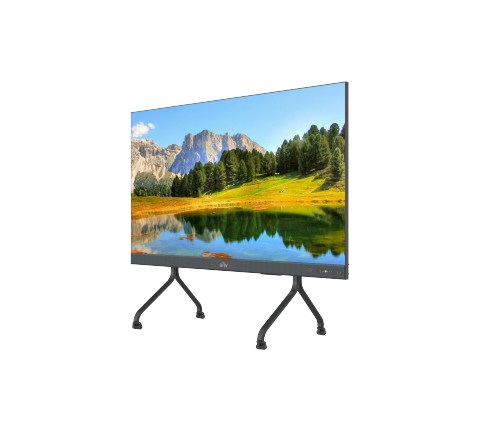

MW72T-162H-C	162 Inches All-in-one LED Display
