Home Products LCD Video Wall MW-A55-B1

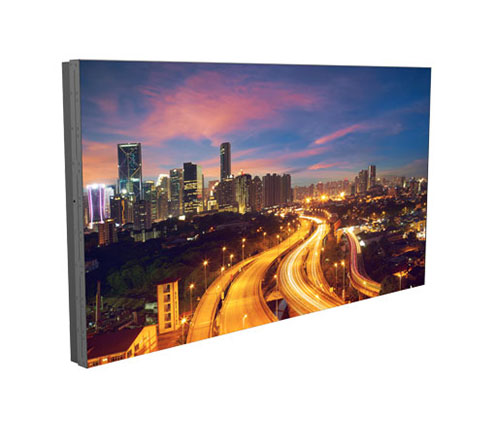

MW-A55-B1

LCD Splicing Display Unit

Download

Datasheet of MW-A55-B1

Back to list

Product specification

Download

Model	MW-A55-B1
Display
Diagonal Size (inch)	55″
Backlight	LED (Direct type)
Physical Seam	3.5 mm
Resolution	1920×1080
Color	16.7M
Brightness	500 cd/m²
Contrast	4000:1
Response Time	8 ms
Viewing Angle	Horizontal 178°, Vertical 178°
Interface
Input Interface	1×VGA, 1×DVI, 2×HDMI
Loop Interface	1×HDMI
USB	1×USB
Control Interface	1×RS-232 IN, 1×RS-232 OUT, 1×IR
General
Dimensions (W×H×D)	1213.50mm×684.30mm×125.19mm
Power Supply	100 to 240 VAC
Consumption	210 W
Weight	24.5 Kg
Operation Temperature	0°C ~ 40 °C
Operating Humidity	20%~90% (No Condensation)
