MW-LC22

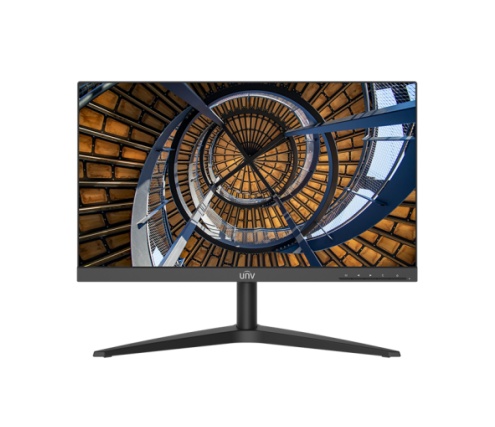

22 Inch Plastic Shell IT Monitor
Download
Datasheet of MW-LC22
Back to list
Product specification
Download
PanelDescription
Panel TypeLED Backlight
Panel Size22”
Pixel Pitch(H*V)(mm)0.24*0.24
Resolution1920*1080
Color Support16.7M
Brightness (cd/m²)250
Contrast Ratio3000:1
Refresh Rate75Hz
Response Time (ms)14
Viewing Angle (H/V)Horizontal 178°, Vertical 178°
Operation Hour18/7
InterfaceDescription
Video Input1* HDMI、1*VGA
VESADescription
VESA(mm)100*100
Wall-mounted Thread4-M4 Threaded hole
OSDDescription
Multi-Language16 (English, French, Spanish, Portuguese, German, Italian, Dutch, Swedish, Finnish, Polish, Czech, Russian, Korean, Chinese Simplified, Chinese Traditional, Japanese)
GeneralDescription
Input VoltageDC 12V, 2A
Typical power consumption (W)≤24 (on)
Standby power consumption (W)≤0.5(Standby)
Product Dimensions (W*H*D)(mm)493.06*382.69*199.83
(With Pedestal)
Package Dimensions (W*H*D)(mm)557*370*140
Weight(Kg)Net Weight:2.3
Gross Weight:3.3
Operation Temperature0°C ~ 40 °C
Operating Humidity20%~85% (No Condensation)
Storage Temperature-10°C ~ 50°C
Storage Humidity10%~90% (No Condensation)
