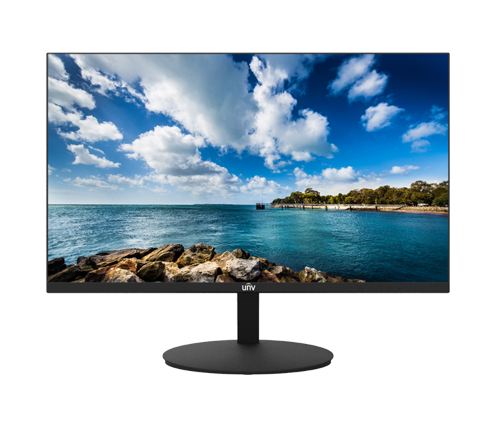

| Model | MW3224-V |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 23.8” |
| Aspect Ratio | 16:9 |
| Pixel Pitch(mm) | 0.2745*0.2745 |
| Max Resolution | 1920*1080 |
| Brightness(cd/m2) | 250 |
| Contrast | 3000:1 |
| Response Time(ms) | 19 |
| Color | 16.7M |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Refresh Rate | 60Hz |
| Interface | |
| Input | 1*VGA、1*HDMI |
| Audio | |
| Audio Input | 1, 3.5 mm mini-jack |
| Speaker | 2*1.5W |
| OSD | |
| Multi- Language | 8(English, France, Spanish, German,Russia,Korea,Japanese,Simplified Chinese ) |
| Mounting | |
| VESA | 100mm * 100mm |
| Wall-mounted Thread | 4-M4 Threaded hole, depth 10mm |
| General | |
| Power supply | DC 12V, 2A |
| Consumption | <24 W(on) <0.5 W(Standby) |
| Operation Temperature | 0°C ~ 40 °C(32°F~104°F) |
| Operating Humidity | 20%~85% (No Condensation) |
| Storage Temperature | -10°C ~50°C (14°F~122°F) |
| Storage Humidity | 10%~90% (No Condensation) |
| Dimension (W*H*D) (mm) | 541.8*412.6*200 (With Pedestal) |
| Package(W*H*D)(mm) | 606*405*125 |
| Weight | Net Weight:3.3Kg(7.28Lb) Gross Weight:4.6Kg(10.14Lb) |
| Accessory | |
| Standard | HDMI cable、Power cable、Adapter、 Pedestal、Quick Guide |
| Optional | Hanging bracket(Model: HB-4022-E) |
